12 Volt 5 Amp Online Isolation Transformer
Product ID: TLS100EW12A5
TLS100EW12A5
Order:
Download
Features
- Single phase step down transformer
- One primary coil and one secondary coil
- Primary coil designed to connect directly to 230 volt 50 Hz power line
- Electrically isolated primary and secondary winding
- Double insulated copper wire winding
- High quality laminated steel core
- Small cubic shape
- Bracket with base fixture suitable for PCB or chassis mount
- Color coded wire terminals of minimum 12cm length
Winding Material:Aluminium
General Specifications
| Output Voltage at Secondary Coil: | 12.0 | Vrms |
| Max Output Current: | 5.000 | Amp-rms |
| Power Rating: | 60.0 | VA |
| Input Voltage at Primary Coil: | 230 | Vrms |
| Max Input Current: | 0.710 | Amp-rms |
| Freuency: | 50/60 | Hz |
| Primary Coil Resistance: | 30.2 | Ohm |
| Secondary Coil Resistance: | 4.2 | Ohm |
(*) 10% tolerance applicable to all parameters
Schematic Diagram
Dimensions
| Length (L) : | 77.0 | mm |
| Width (w) : | 75.0 | mm |
| Height (H) : | 65.0 | mm |
| Height with Connector (H1) : | 65.0 | mm |
| Width with Mounting Plate (W1) : | 82.0 | mm |
| Length with Mounting Plate (L2) : | 77.0 | mm |
| Mounting hole position (C1) : | 10.4 | mm |
| Mounting hole position (C2) : | 6.4 | mm |
| Mounting hole position (C3) : | 1.0 | mm |
(*) 20% tolerance applicable to all dimensions
Weight: 1,387.0gram
Mechanical Diagram
Performance Characteristics

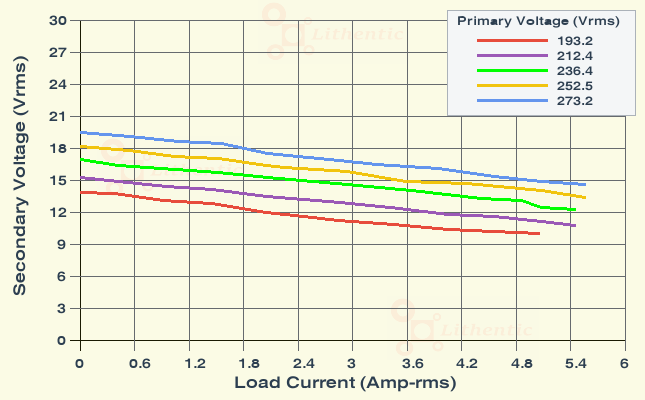

Load Characteristics (12.0 Vrms)

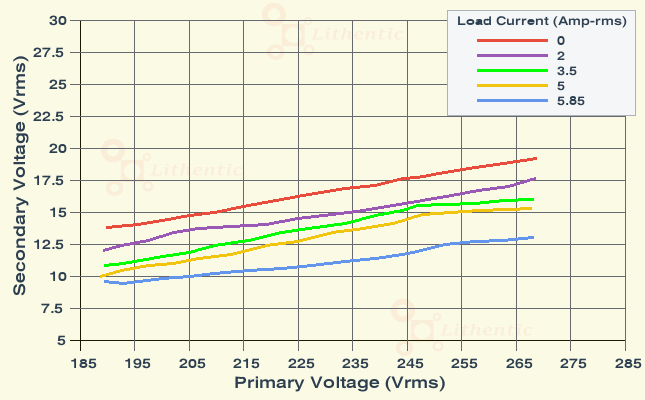

Line Characteristics (12.0 Vrms)

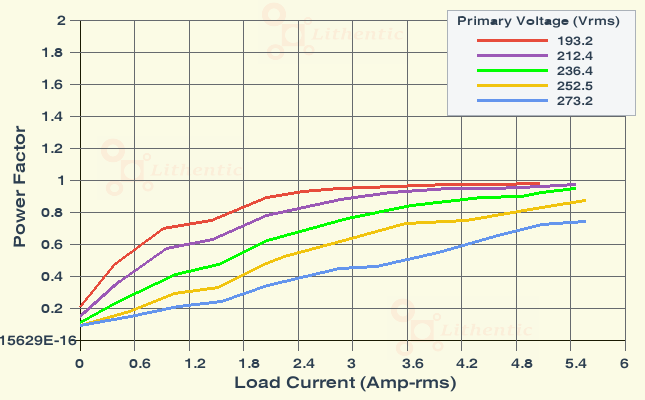

Power Factor at Primary

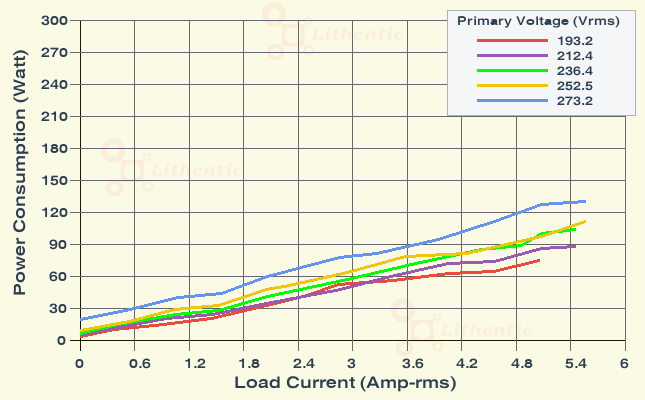

Power Consumption at Primary

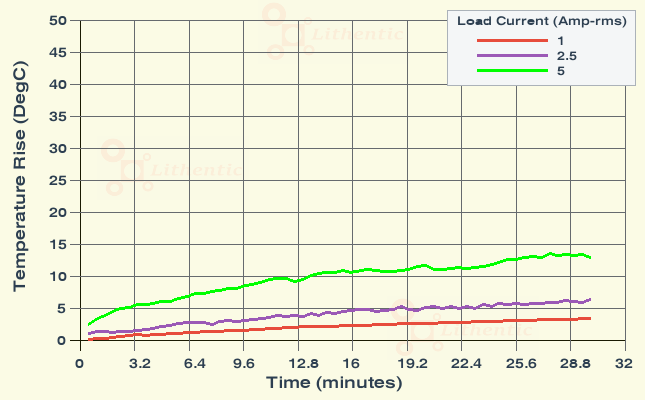

Surface Temperature (12.0 Vrms)
Price Details
TLS100EW12A5
Order:
Avilibility
Price for 1 unit
Price upto 10 units
Price upto 25 units
Price upto 50 units
Price for 50+ units
In Stock
₹442.44
₹429.17
₹415.89
₹407.04
₹398.20
Please contact us to order large quantities
