Unshielded Wire Wound SMD Inductors
Product Series: LSID
| Product Series | Image | Dimensions (mm) | Inductance (µH) | Current (Amp) | Operating Temperature Range (°C) | Storage |
|---|---|---|---|---|---|---|

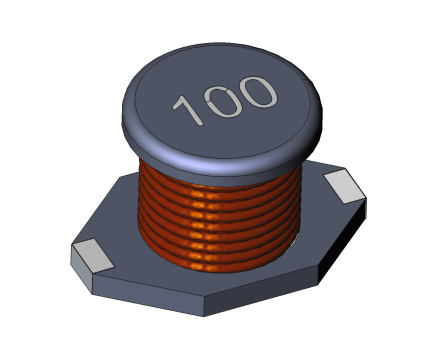

| LSID04 |
|
4.5 x 4.0 x 3.2 mm | 1 to 330 µH | 0.15 to 3.8 Amp | -25 °C to 105 °C | 40°C Max 75% Humidity |

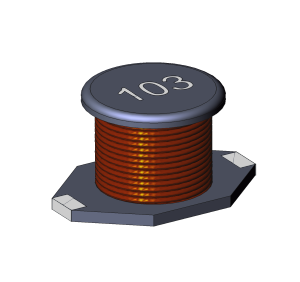

| LSID5P8 |
|
5.8 x 5.2 x 2.5 mm | 1 to 1000 µH | 0.5 to 4.5 Amp | -25 °C to 105 °C | 40°C Max 75% Humidity |

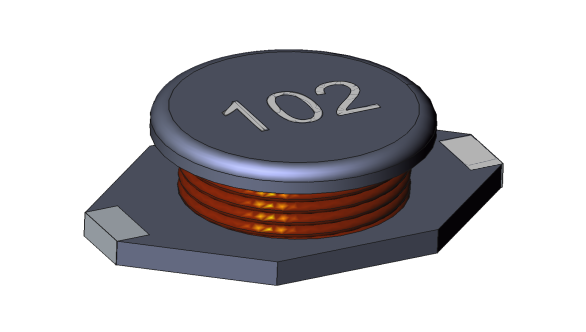

| LSID7P8 |
|
7.8 x 7.0 x 3.5 mm | 10 to 1000 µH | 0.28 to 3.7 Amp | -25 °C to 105 °C | 40°C Max 75% Humidity |

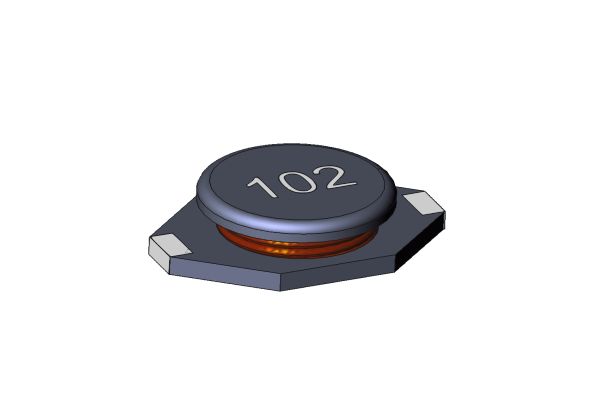

| LSID6P6 |
|
6.6 x 4.4 x 2.9 mm | 1 to 1000 µH | 0.07 to 2.9 Amp | -25 °C to 105 °C | 40°C Max 75% Humidity |
| LSID13x5 |
|
12.9 x 9.4 x 5.2 mm | 1 to 1500 µH | 0.25 to 9 Amp | -25 °C to 105 °C | 40°C Max 75% Humidity |
| LSID13x11 |
|
12.9 x 9.4 x 11.4 mm | 3.3 to 1000 µH | 0.8 to 10 Amp | -25 °C to 105 °C | 40°C Max 75% Humidity |
| LSID18 |
|
18.5 x 15.2 x 7.1 mm | 1 to 1000 µH | 1 to 20 Amp | -25 °C to 105 °C | 40 °C Max 75% Humidity |
