Single Phase Center Tap Isolation Transformers
Product Series: TLS101
- Power Rating: 2 VA to 300 VA
- Transformer Output Voltage: 4 Vrms to 48 Vrms
- Maximum Load Current: 0.2 Amp-rms to 8 Amp-rms
- Transformer Input: 230 Vrms 50 Hz
- Comes with color coded wire terminals
- Negligible heating at rated operating conditions
- Near unity input power factor at rated load
- Suitable for energy efficient power supply applications

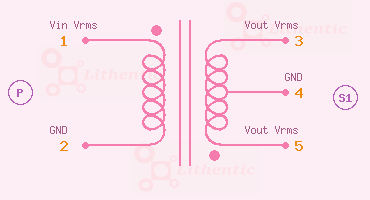

Transformer Schematic :
Copper Winding:
| Order/ Sample | Product ID | Output Voltage (Vrms) | Max Output Current (Amp-rms) | Power Rating (VA) | Shape | Dimensions (mm) L x W x H | Weight (gm) |
|---|
Aluminium Winding:
| Order/ Sample | Product ID | Output Voltage (Vrms) | Max Output Current (Amp-rms) | Power Rating (VA) | Shape | Dimensions (mm) L x W x H | Weight (gm) |
|---|
