Single Secondary Forward Mode Transformers
Product Series: LFS100
Features :
- High load capacity Single secondary coil
- Off the Shelf step down configuration
- Designed for wide band high frequency applications
- High dielectric isolation
- Test values in 10% standard tolerance range
- Negligible heating at rated operating conditions
- Compact design, low footprint, reduced EMI
- Suitable for Forward Mode Isolation applications

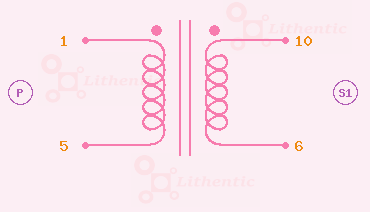

Schematic :
Applications :
Power Electronic Circuits, DC to DC Converters, Solar Power, Lighting, Home Appliances, Electrical Vehicles, Mobile & laptop Chargers, AC/DC Inverters etc.
| Order/ Sample | Product ID | Primary Inductance (µH) | Test Frequency (KHz) | Primary DC Resistance (Ohm) | Turn Ratio (pri : sec) | Leakage Inductance (µH) | Secondary DC Resistance (Ohm) | Dimensions (mm) L x W x H | Weight (gm) |
|---|
