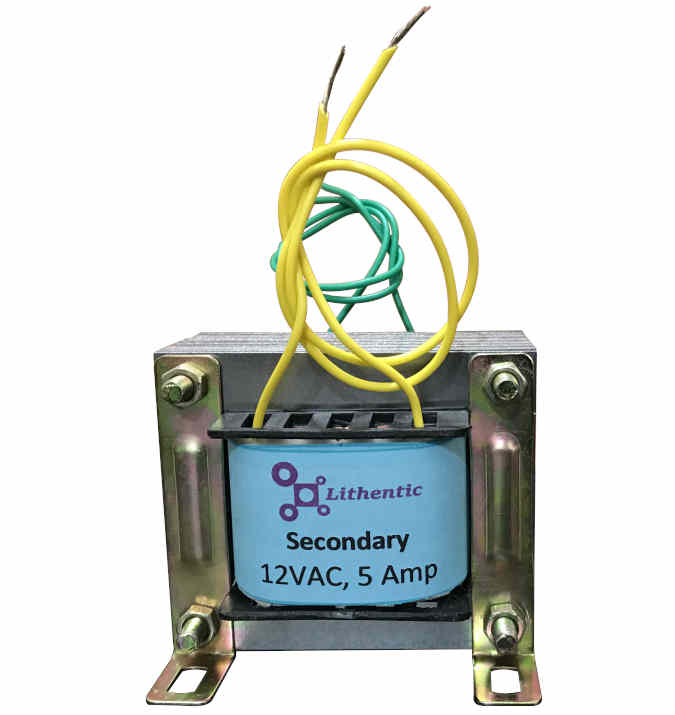

12 Volt 5 Amp Online Isolation Transformer
Product ID: TLS100EW12C5
TLS100EW12C5
Order:
Download
Features
- Single phase step down transformer
- One primary coil and one secondary coil
- Primary coil designed to connect directly to 230 volt 50 Hz power line
- Electrically isolated primary and secondary winding
- Double insulated copper wire winding
- High quality laminated steel core
- Small cubic shape
- Bracket with base fixture suitable for PCB or chassis mount
- Color coded wire terminals of minimum 12cm length
Winding Material:Copper
General Specifications
| Output Voltage at Secondary Coil: | 12.0 | Vrms |
| Max Output Current: | 5.000 | Amp-rms |
| Power Rating: | 60.0 | VA |
| Input Voltage at Primary Coil: | 230 | Vrms |
| Max Input Current: | 0.600 | Amp-rms |
| Freuency: | 50/60 | Hz |
| Primary Coil Resistance: | 24.6 | Ohm |
| Secondary Coil Resistance: | 2.8 | Ohm |
(*) 10% tolerance applicable to all parameters
Schematic Diagram
Dimensions
| Length (L) : | 77.0 | mm |
| Width (w) : | 67.0 | mm |
| Height (H) : | 65.0 | mm |
| Height with Connector (H1) : | 65.0 | mm |
| Width with Mounting Plate (W1) : | 79.6 | mm |
| Length with Mounting Plate (L2) : | 77.0 | mm |
| Mounting hole position (C1) : | 10.4 | mm |
| Mounting hole position (C2) : | 6.4 | mm |
| Mounting hole position (C3) : | 1.0 | mm |
(*) 20% tolerance applicable to all dimensions
Weight: 1,314.0gram
Mechanical Diagram
Performance Characteristics
Load Characteristics (12.0 Vrms)

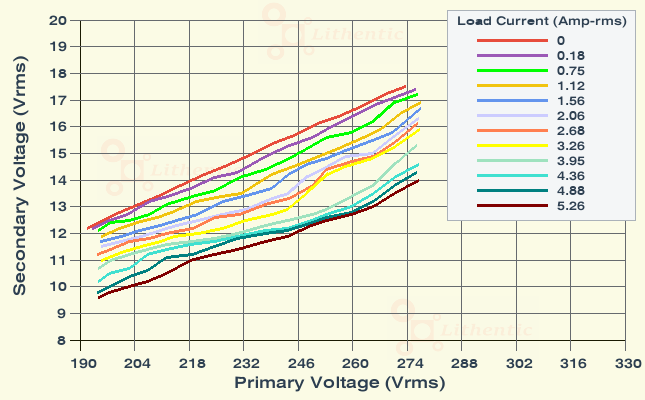

Line Characteristics (12.0 Vrms)

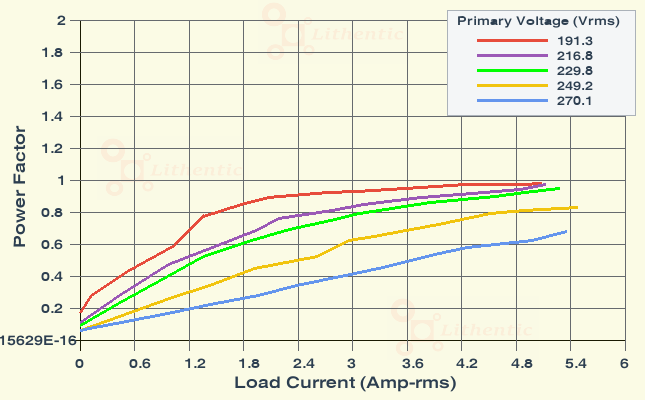

Power Factor at Primary
Power Consumption at Primary

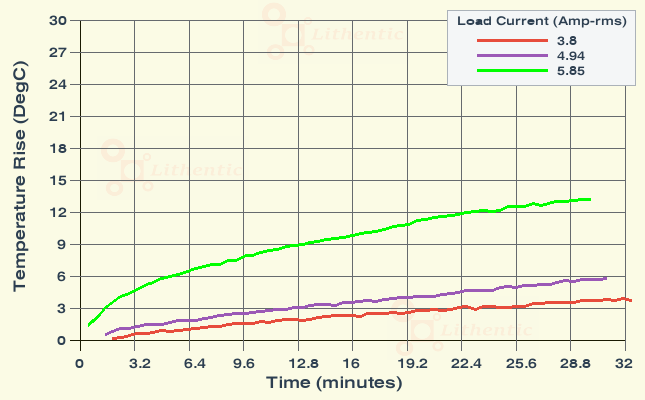

Surface Temperature (12.0 Vrms)
