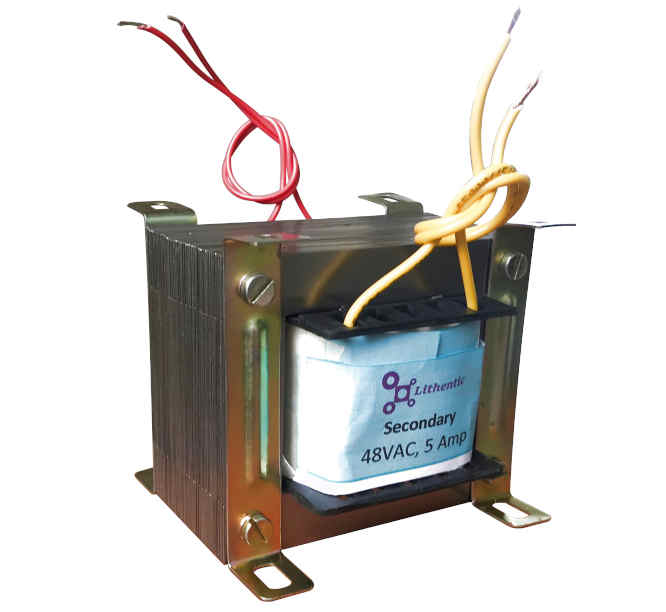

48 Volt 5 Amp Online Isolation Transformer
Product ID: TLS100EW48C5
TLS100EW48C5
Order:
Download
Features
- Single phase step down transformer
- One primary coil and one secondary coil
- Primary coil designed to connect directly to 230 volt 50 Hz power line
- Electrically isolated primary and secondary winding
- Double insulated copper wire winding
- High quality laminated steel core
- Small cubic shape
- Bracket with base fixture suitable for PCB or chassis mount
- Color coded wire terminals of minimum 12cm length
Winding Material:Copper
General Specifications
| Output Voltage at Secondary Coil: | 48.0 | Vrms |
| Max Output Current: | 5.000 | Amp-rms |
| Power Rating: | 240.0 | VA |
| Input Voltage at Primary Coil: | 230 | Vrms |
| Max Input Current: | 1.650 | Amp-rms |
| Freuency: | 50/60 | Hz |
| Primary Coil Resistance: | 8.8 | Ohm |
| Secondary Coil Resistance: | 2.0 | Ohm |
(*) 10% tolerance applicable to all parameters
Schematic Diagram
Dimensions
| Length (L) : | 95.0 | mm |
| Width (w) : | 83.8 | mm |
| Height (H) : | 86.7 | mm |
| Height with Connector (H1) : | 86.7 | mm |
| Width with Mounting Plate (W1) : | 91.3 | mm |
| Length with Mounting Plate (L2) : | 95.5 | mm |
| Mounting hole position (C1) : | 10.0 | mm |
| Mounting hole position (C2) : | 7.5 | mm |
| Mounting hole position (C3) : | 1.0 | mm |
(*) 20% tolerance applicable to all dimensions
Weight: 2,642.0gram
Mechanical Diagram
Performance Characteristics

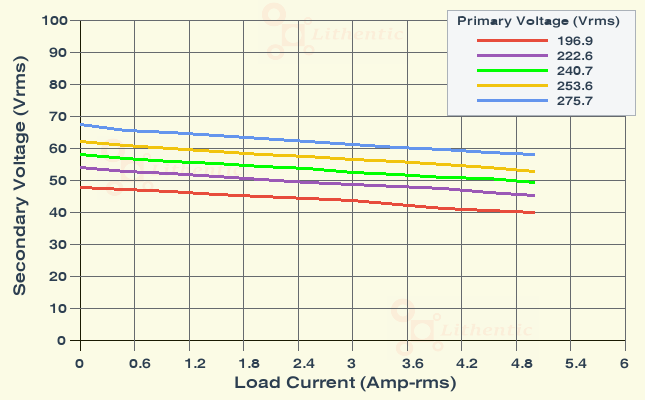

Load Characteristics (48.0 Vrms)

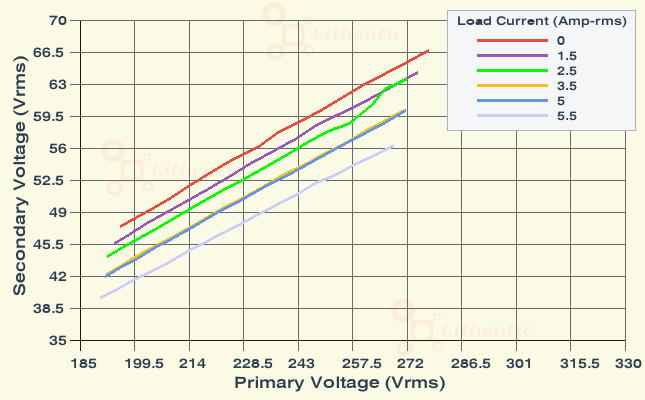

Line Characteristics (48.0 Vrms)
Power Factor at Primary

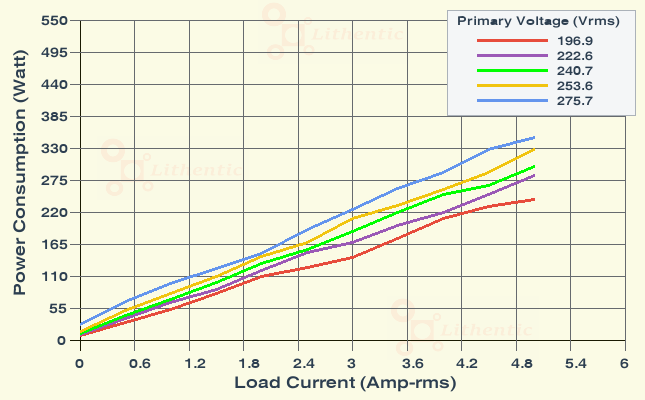

Power Consumption at Primary
Surface Temperature (48.0 Vrms)
Price Details
TLS100EW48C5
Order:
Avilibility
Price for 1 unit
Price upto 10 units
Price upto 25 units
Price upto 50 units
Price for 50+ units
In Stock
₹1,000.00
₹970.00
₹940.00
₹920.00
₹900.00
Please contact us to order large quantities
