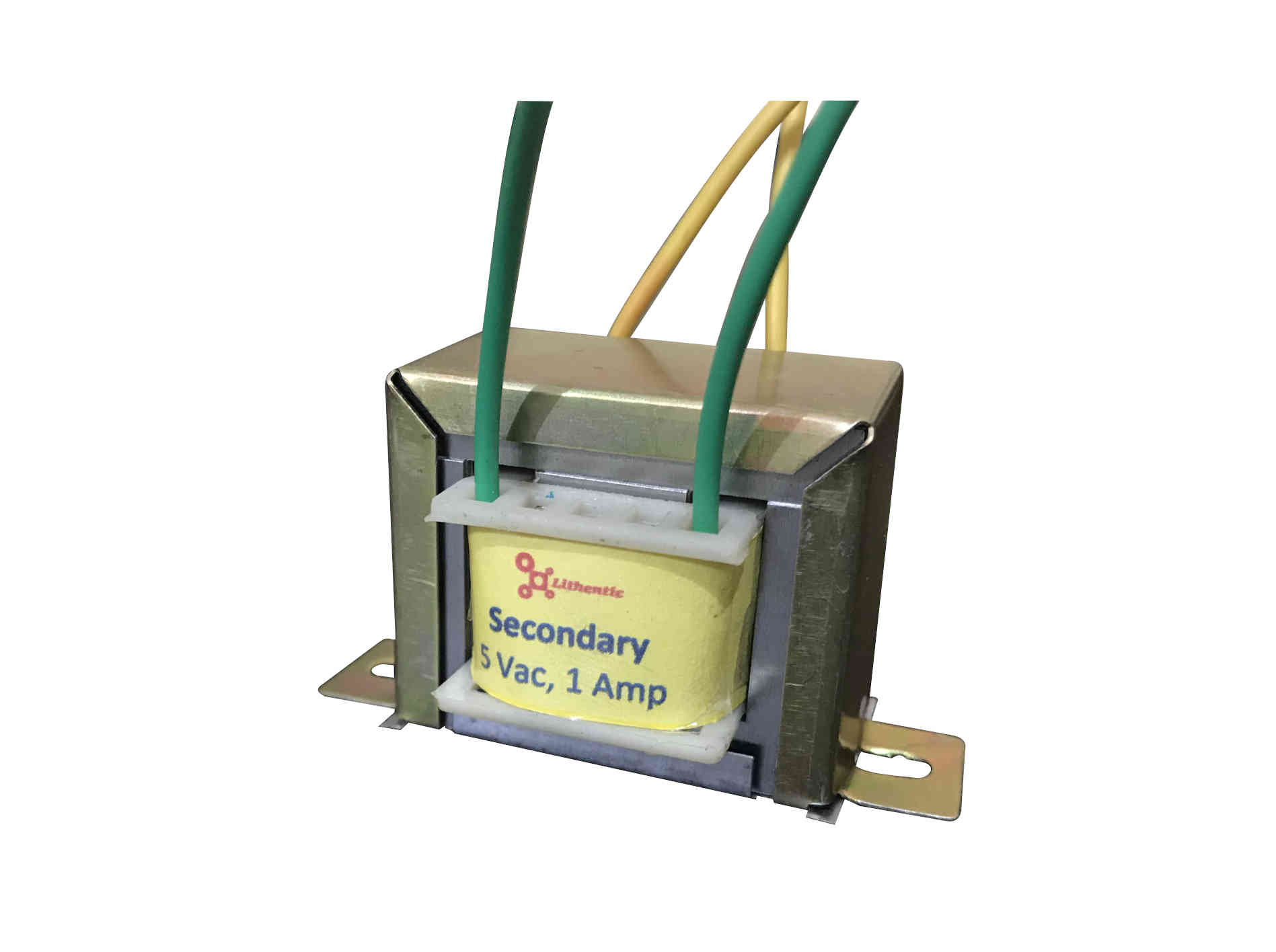

5 Volt 1 Amp Online Isolation Transformer
Product ID: TLS100EW5C1
TLS100EW5C1
Order:
Download
Features
- Single phase step down transformer
- One primary coil and one secondary coil
- Primary coil designed to connect directly to 230 volt 50 Hz power line
- Electrically isolated primary and secondary winding
- Double insulated copper wire winding
- High quality laminated steel core
- Small cubic shape
- Bracket with base fixture suitable for PCB or chassis mount
- Color coded wire terminals of minimum 12cm length
Winding Material:Copper
General Specifications
| Output Voltage at Secondary Coil: | 5 | Vrms |
| Max Output Current: | 1.000 | Amp-rms |
| Power Rating: | 5.0 | VA |
| Input Voltage at Primary Coil: | 230 | Vrms |
| Max Input Current: | 0.050 | Amp-rms |
| Freuency: | 50/60 | Hz |
| Primary Coil Resistance: | 468 | Ohm |
| Secondary Coil Resistance: | 2.7 | Ohm |
(*) 10% tolerance applicable to all parameters
Schematic Diagram
Dimensions
| Length (L) : | 39.0 | mm |
| Width (w) : | 42.0 | mm |
| Height (H) : | 33.0 | mm |
| Height with Connector (H1) : | 33.0 | mm |
| Width with Mounting Plate (W1) : | 42.0 | mm |
| Length with Mounting Plate (L2) : | 59.7 | mm |
| Mounting hole position (C1) : | 26.0 | mm |
| Mounting hole position (C2) : | 4.5 | mm |
| Mounting hole position (C3) : | 1.0 | mm |
(*) 20% tolerance applicable to all dimensions
Weight: 289.0gram
Mechanical Diagram
Performance Characteristics

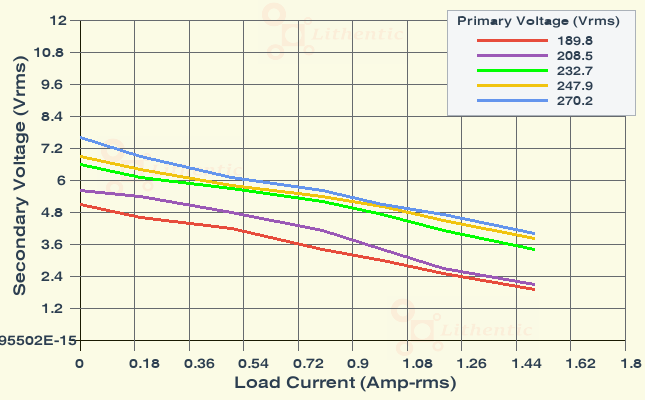

Load Characteristics (5 Vrms)

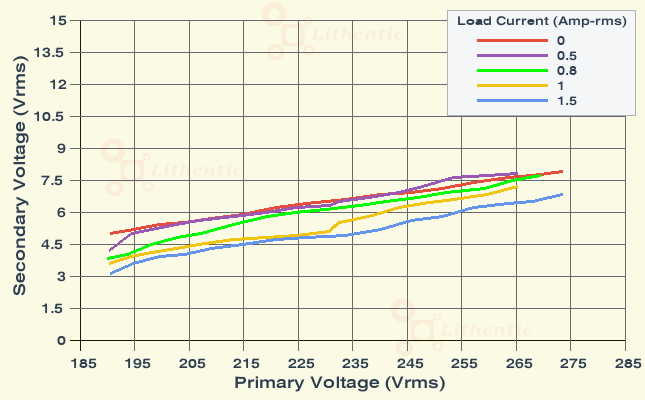

Line Characteristics (5 Vrms)
Power Factor at Primary

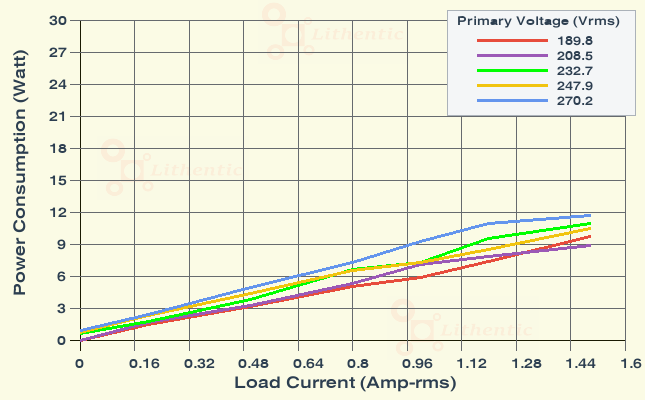

Power Consumption at Primary
