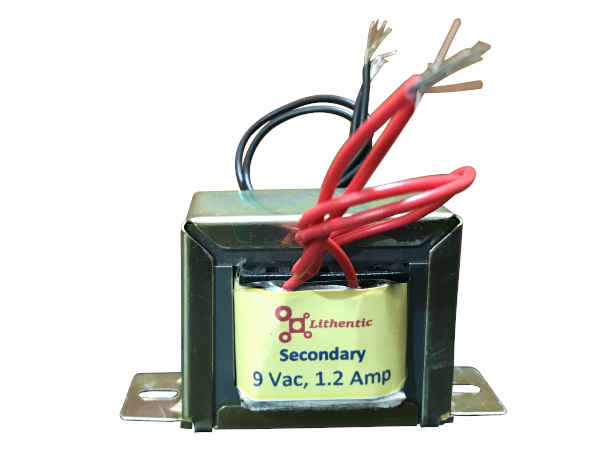

9 Volt 1.2 Amp Online Isolation Transformer
Product ID: TLS100EW9C1P2
TLS100EW9C1P2
Order:
Download
Features
- Single phase step down transformer
- Electrically isolated single primary and single secondary winding
- Double insulated copper wire winding
- High quality laminated steel core
- Small cubic shape
- Bracket with base fixture suitable for PCB or chassis mount
- It comes with 2 connector variants, Color Coded Wire, or Screw Terminal Connector
Winding Material:Copper
General Specifications
| Output Voltage at Secondary Coil: | 9 | Vrms |
| Max Output Current: | 1.200 | Amp-rms |
| Power Rating: | 10.8 | VA |
| Input Voltage at Primary Coil: | 230 | Vrms |
| Max Input Current: | 0.060 | Amp-rms |
| Freuency: | 50/60 | Hz |
| Primary Coil Resistance: | 238 | Ohm |
| Secondary Coil Resistance: | 2.7 | Ohm |
(*) 10% tolerance applicable to all parameters
Schematic Diagram
Dimensions
| Length (L) : | 51.0 | mm |
| Width (w) : | 44.0 | mm |
| Height (H) : | 42.0 | mm |
| Height with Connector (H1) : | 42.0 | mm |
| Width with Mounting Plate (W1) : | 44.0 | mm |
| Length with Mounting Plate (L2) : | 76.0 | mm |
| Mounting hole position (C1) : | 22.0 | mm |
| Mounting hole position (C2) : | 6.0 | mm |
| Mounting hole position (C3) : | 3.0 | mm |
(*) 20% tolerance applicable to all dimensions
Weight: 385.0gram
Mechanical Diagram
Performance Characteristics

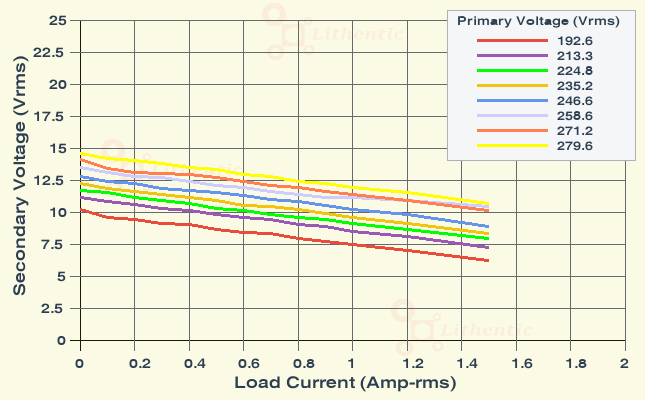

Load Characteristics (9 Vrms)

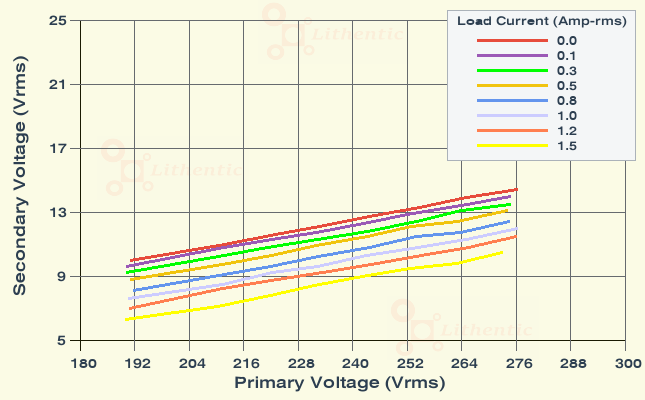

Line Characteristics (9 Vrms)
Power Factor at Primary

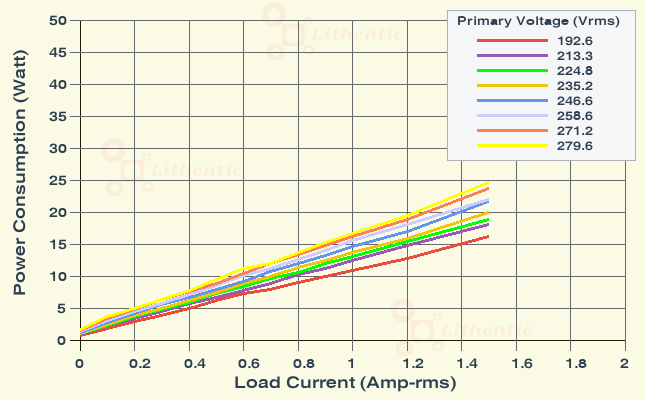

Power Consumption at Primary
Surface Temperature (9 Vrms)
