12-0-12 Volt 4 Amp Center Tapped Online Isolation Transformer
Product ID: TLS101EW12A4
TLS101EW12A4
Order:
Download
Features
- Single phase step down center tapped transformer
- Electrically isolated single primary and single center tapped secondary winding
- Double insulated aluminium wire winding
- High quality laminated steel core
- Cubic shape
- Clamp mounting suitable for chassis mount
- Color coded wire connections
- Free of noise
- Least heating in normal operating range
- It can overdrive from rated current with proper cooling arrangement, refer to temperature plots given below
Winding Material:Aluminium
General Specifications
| Output Voltage at Secondary Coil: | 12-0-12 | Vrms |
| Max Output Current: | 4.000 | Amp-rms |
| Power Rating: | 96.0 | VA |
| Input Voltage at Primary Coil: | 230 | Vrms |
| Max Input Current: | 1.210 | Amp-rms |
| Freuency: | 50/60 | Hz |
| Primary Coil Resistance: | 9.3 | Ohm |
| Secondary Coil Resistance: | 2.4 | Ohm |
(*) 10% tolerance applicable to all parameters

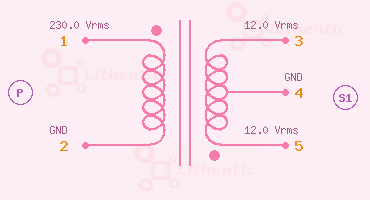

Schematic Diagram
Dimensions
| Length (L) : | 95.0 | mm |
| Width (w) : | 84.0 | mm |
| Height (H) : | 80.0 | mm |
| Height with Connector (H1) : | 92.4 | mm |
| Width with Mounting Plate (W1) : | 91.0 | mm |
| Length with Mounting Plate (L2) : | 95.0 | mm |
| Mounting hole position (C1) : | 10.0 | mm |
| Mounting hole position (C2) : | 7.5 | mm |
| Mounting hole position (C3) : | 1.5 | mm |
(*) 20% tolerance applicable to all dimensions
Weight: 2,387.0gram
Mechanical Diagram
Performance Characteristics

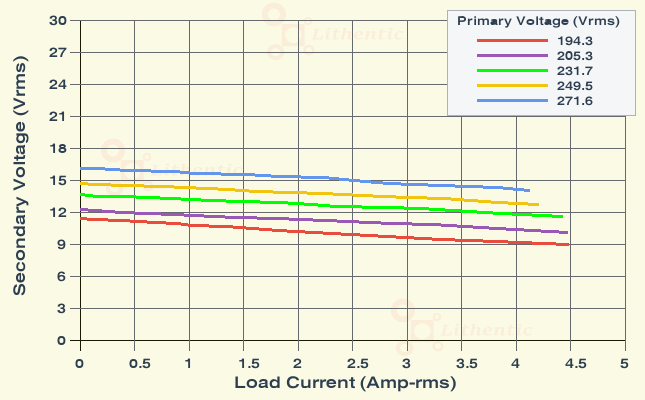

Load Characteristics (12-0-12 Vrms)
Line Characteristics (12-0-12 Vrms)
Power Factor at Primary

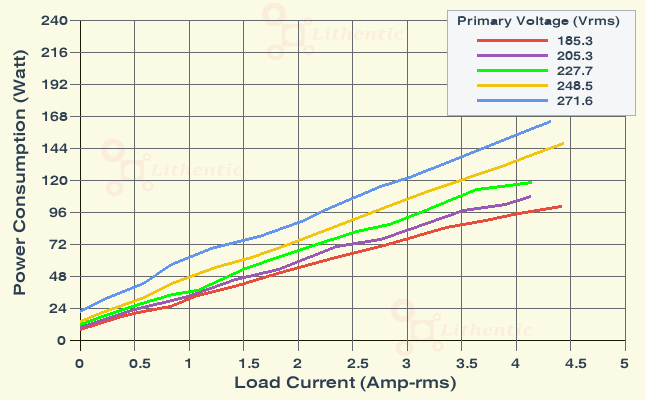

Power Consumption at Primary

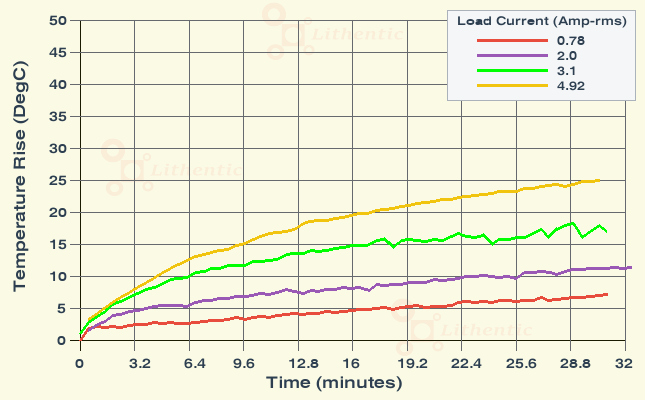

Surface Temperature (12-0-12 Vrms)
