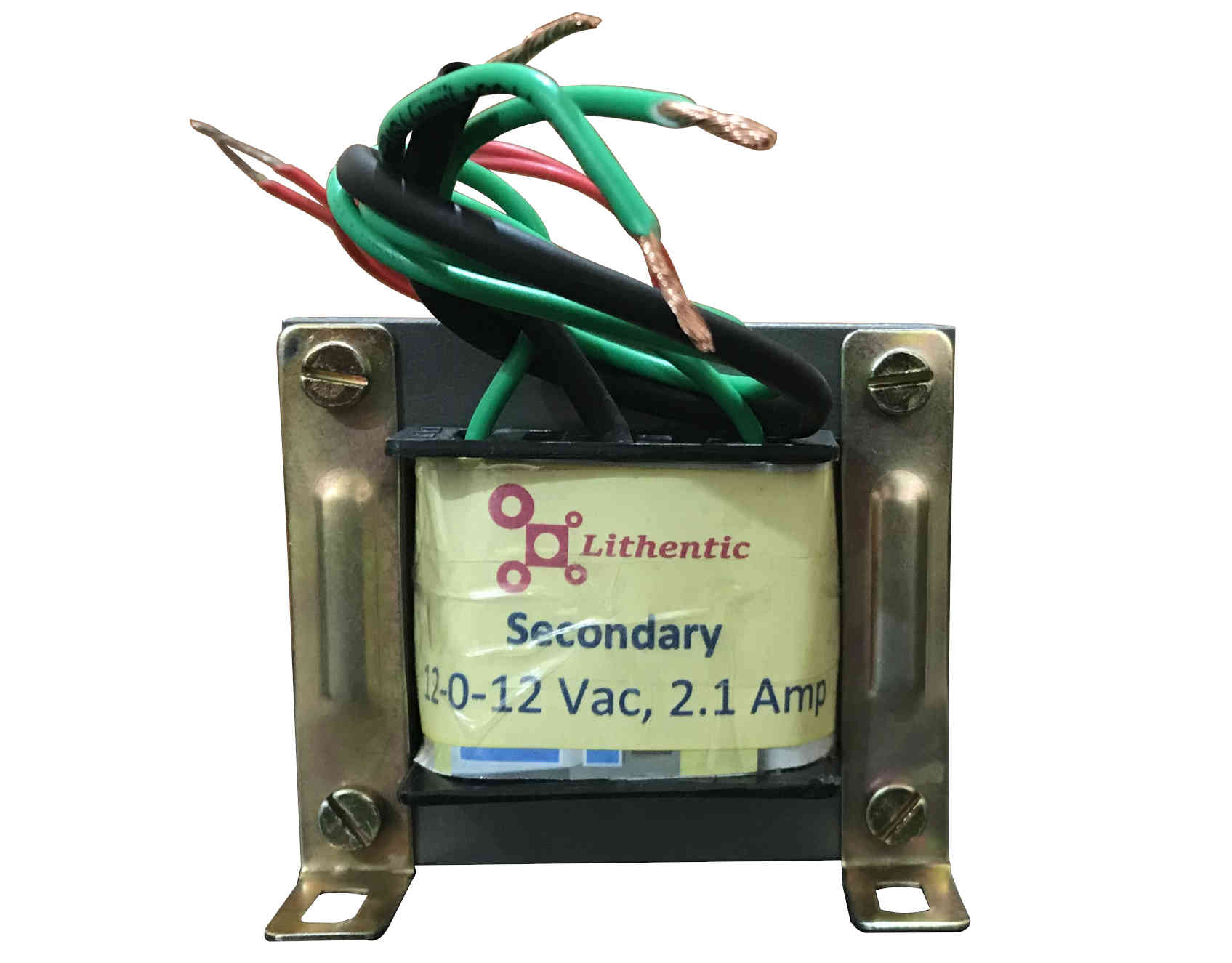

12-0-12 Volt 2.1Amps Center Tapped Online Isolation Transformer
Product ID: TLS101EW12C2P1
TLS101EW12C2P1
Order:
Download
Features
- Single phase step down center tapped transformer
- Electrically isolated single primary and single center tapped secondary winding
- Double insulated copper wire winding
- High quality laminated steel core
- Cubic shape
- Clamp mounting suitable for chassis mount
- Color coded wire connections
- Free of noise
- Least heating in normal operating range
- It can overdrive from rated current with proper cooling arrangement, refer to temperature plots given below
Winding Material:Copper
General Specifications
| Output Voltage at Secondary Coil: | 12-0-12 | Vrms |
| Max Output Current: | 2.100 | Amp-rms |
| Power Rating: | 50.4 | VA |
| Input Voltage at Primary Coil: | 230 | Vrms |
| Max Input Current: | 0.350 | Amp-rms |
| Freuency: | 50/60 | Hz |
| Primary Coil Resistance: | 26 | Ohm |
| Secondary Coil Resistance: | 2 | Ohm |
(*) 10% tolerance applicable to all parameters

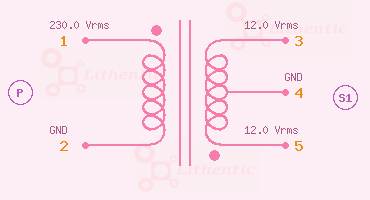

Schematic Diagram
Dimensions
| Length (L) : | 77.0 | mm |
| Width (w) : | 67.0 | mm |
| Height (H) : | 66.0 | mm |
| Height with Connector (H1) : | 66.0 | mm |
| Width with Mounting Plate (W1) : | 72.6 | mm |
| Length with Mounting Plate (L2) : | 77.0 | mm |
| Mounting hole position (C1) : | 10.4 | mm |
| Mounting hole position (C2) : | 6.5 | mm |
| Mounting hole position (C3) : | 1.0 | mm |
(*) 20% tolerance applicable to all dimensions
Weight: 1,170.0gram

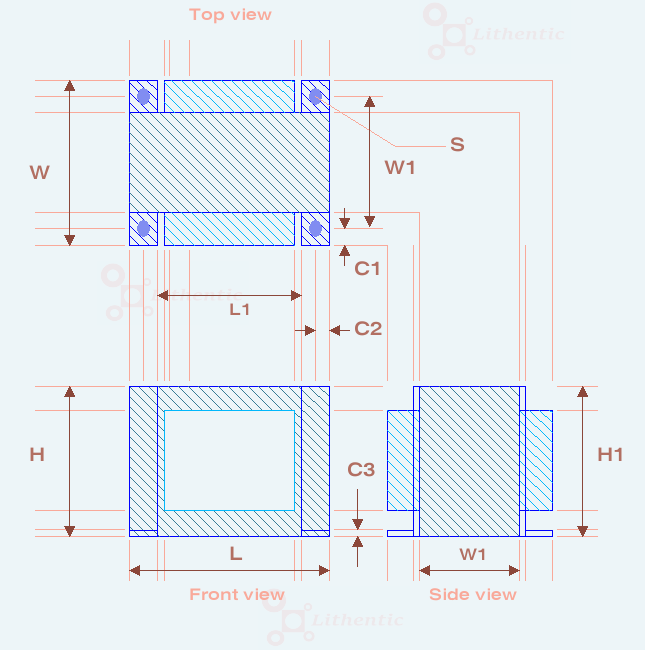

Mechanical Diagram
Performance Characteristics
Load Characteristics (12-0-12 Vrms)

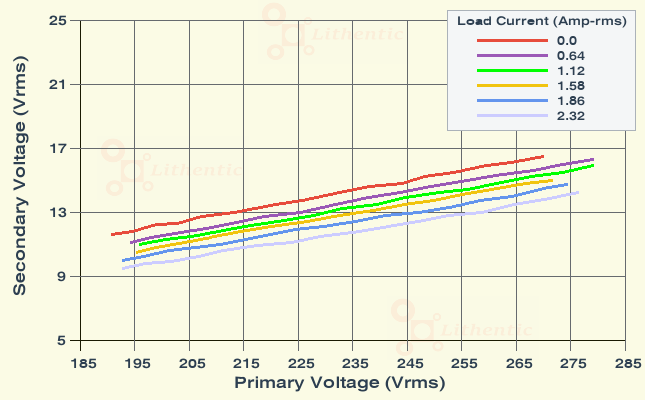

Line Characteristics (12-0-12 Vrms)

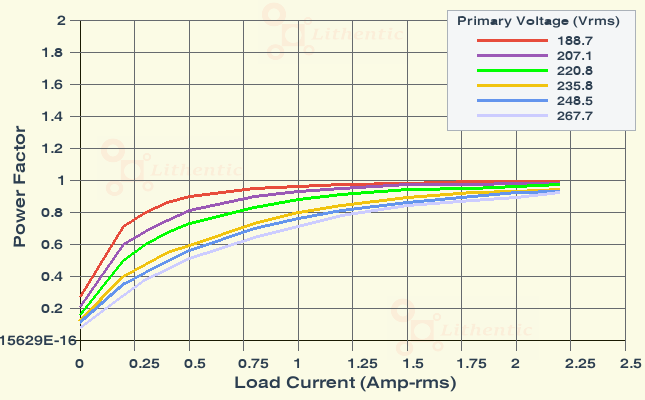

Power Factor at Primary

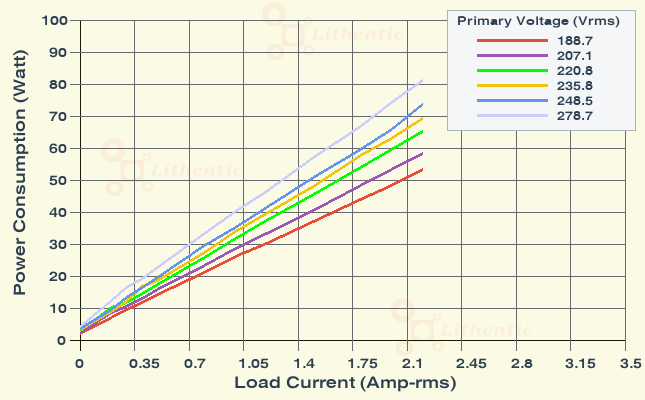

Power Consumption at Primary

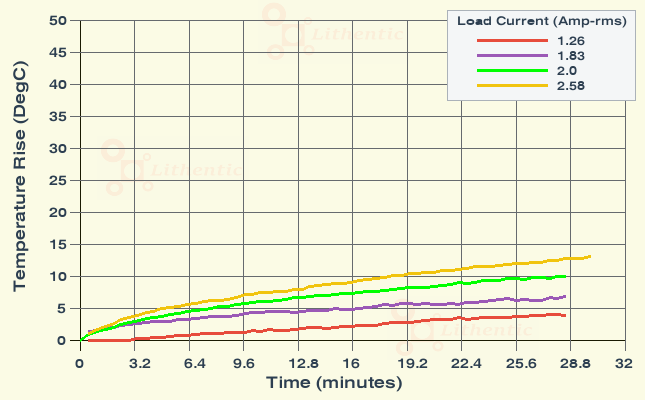

Surface Temperature (12-0-12 Vrms)
