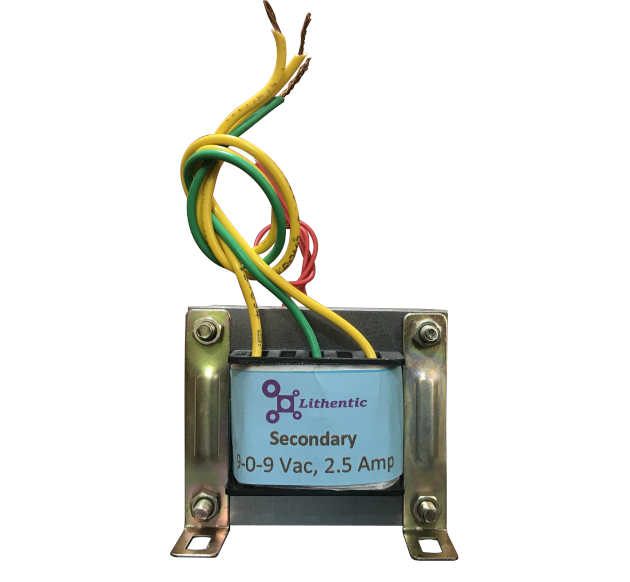

9-0-9 Volt 2.5 Amp Center Tapped Online Isolation Transformer
Product ID: TLS101EW9A2P5
TLS101EW9A2P5
Order:
Download
Features
- Single phase step down center tapped transformer
- Electrically isolated single primary and single center tapped secondary winding
- Double insulated aluminium wire winding
- High quality laminated steel core
- Cubic shape
- Clamp mounting suitable for chassis mount
- Color coded wire connections
- Free of noise
- Least heating in normal operating range
- It can overdrive from rated current with proper cooling arrangement, refer to temperature plots given below
Winding Material:Aluminium
General Specifications
| Output Voltage at Secondary Coil: | 9-0-9 | Vrms |
| Max Output Current: | 2.500 | Amp-rms |
| Power Rating: | 45.0 | VA |
| Input Voltage at Primary Coil: | 230 | Vrms |
| Max Input Current: | 0.800 | Amp-rms |
| Freuency: | 50/60 | Hz |
| Primary Coil Resistance: | 14.3 | Ohm |
| Secondary Coil Resistance: | 2.4 | Ohm |
(*) 10% tolerance applicable to all parameters
Schematic Diagram
Dimensions
| Length (L) : | 77.0 | mm |
| Width (w) : | 81.0 | mm |
| Height (H) : | 66.0 | mm |
| Height with Connector (H1) : | 66.0 | mm |
| Width with Mounting Plate (W1) : | 91.2 | mm |
| Length with Mounting Plate (L2) : | 77.0 | mm |
| Mounting hole position (C1) : | 10.4 | mm |
| Mounting hole position (C2) : | 6.5 | mm |
| Mounting hole position (C3) : | 1.0 | mm |
(*) 20% tolerance applicable to all dimensions
Weight: 1,600.0gram
Mechanical Diagram
Performance Characteristics

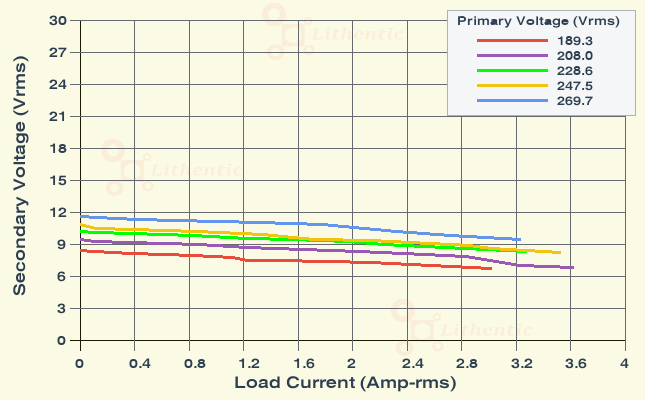

Load Characteristics (9-0-9 Vrms)

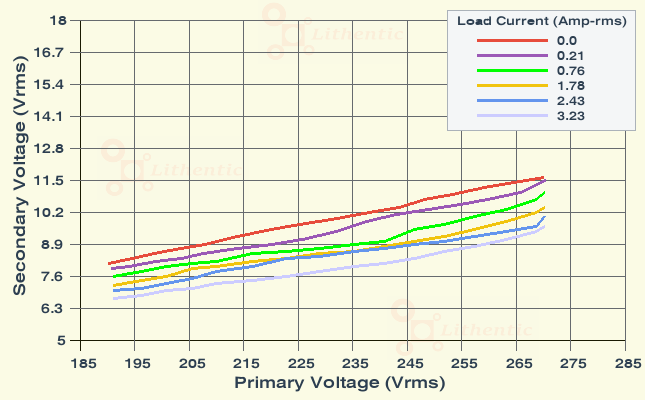

Line Characteristics (9-0-9 Vrms)

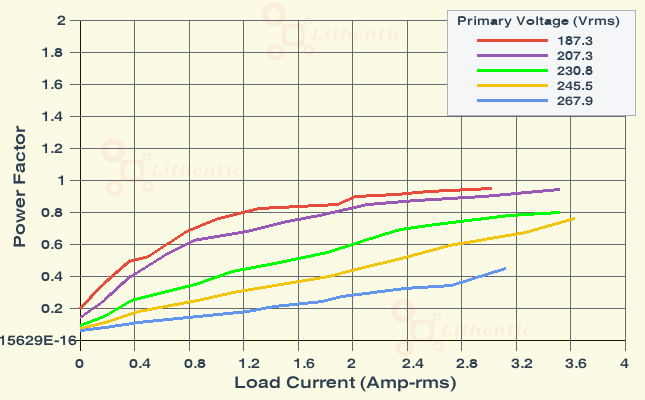

Power Factor at Primary

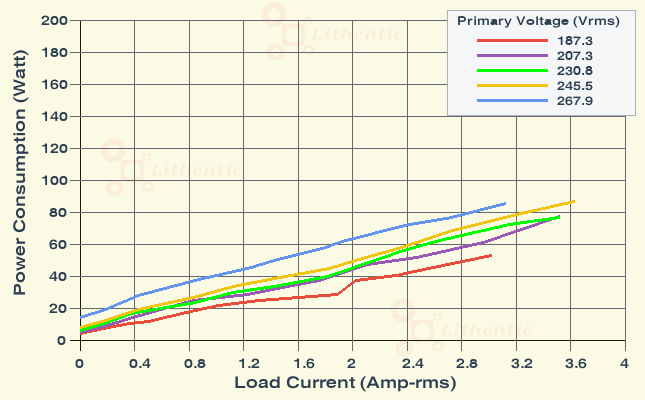

Power Consumption at Primary

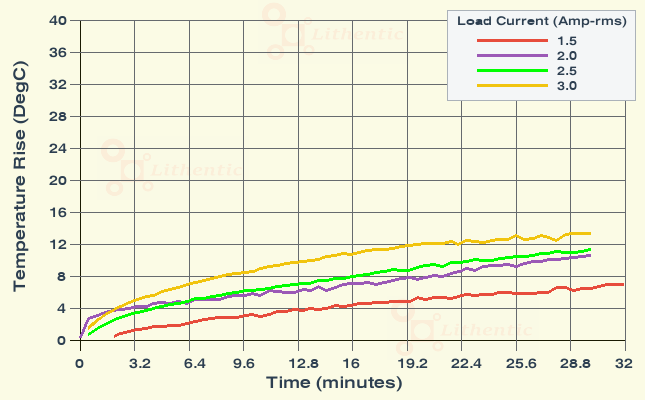

Surface Temperature (9-0-9 Vrms)
Price Details
TLS101EW9A2P5
Order:
Avilibility
Price for 1 unit
Price upto 10 units
Price upto 25 units
Price upto 50 units
Price for 50+ units
In Stock
₹373.40
₹362.20
₹351.00
₹343.53
₹336.06
Please contact us to order large quantities
