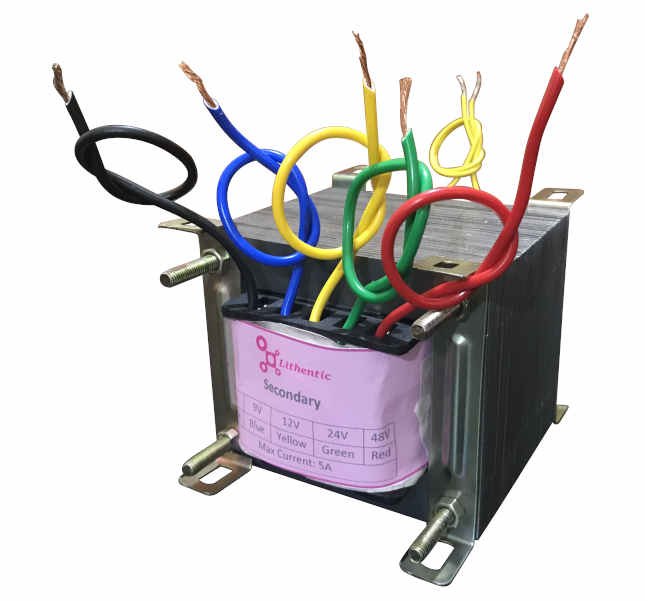

48, 24, 12, 9 Volts 5 Amp Multi-Tap Online Isolation Transformer
Product ID: TLS110EW48A5
TLS110EW48A5
Order:
Download
Features
- Single phase step down transformer
- One primary coil and one secondary coil
- Primary coil designed to connect directly to 230 volt 50 Hz power line
- Electrically isolated primary and secondary winding
- Double insulated copper wire winding
- High quality laminated steel core
- Small cubic shape
- Bracket with base fixture suitable for PCB or chassis mount
- Color coded wire terminals of minimum 12cm length
Winding Material:Aluminium
General Specifications
| Output Voltage at Secondary Coil: | 48, 24, 12, 9 | Vrms |
| Max Output Current: | 5.000 | Amp-rms |
| Power Rating: | 240.0 | VA |
| Input Voltage at Primary Coil: | 230 | Vrms |
| Max Input Current: | 2.000 | Amp-rms |
| Freuency: | 50/60 | Hz |
| Primary Coil Resistance: | 6.8 | Ohm |
| Secondary Coil Resistance: | 2.0 | Ohm |
(*) 10% tolerance applicable to all parameters

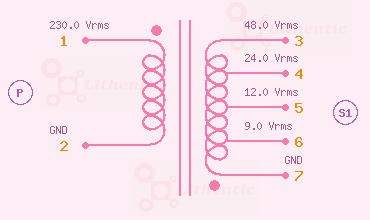

Schematic Diagram
Dimensions
| Length (L) : | 95.0 | mm |
| Width (w) : | 107.0 | mm |
| Height (H) : | 80.0 | mm |
| Height with Connector (H1) : | 86.0 | mm |
| Width with Mounting Plate (W1) : | 108.4 | mm |
| Length with Mounting Plate (L2) : | 95.0 | mm |
| Mounting hole position (C1) : | 10.7 | mm |
| Mounting hole position (C2) : | 7.5 | mm |
| Mounting hole position (C3) : | 1.0 | mm |
(*) 20% tolerance applicable to all dimensions
Weight: 3,718.0gram
Mechanical Diagram
Performance Characteristics

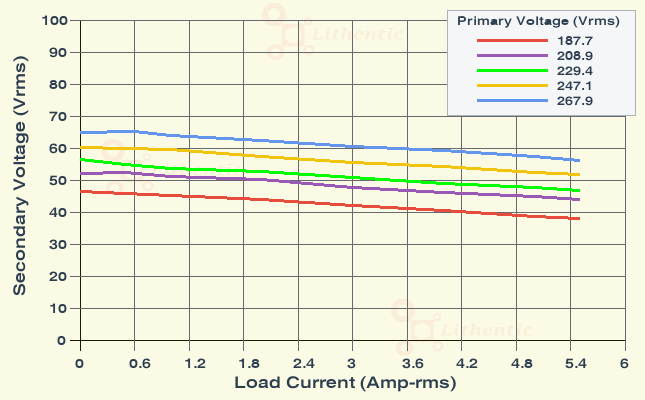

Load Characteristics (48 Vrms)

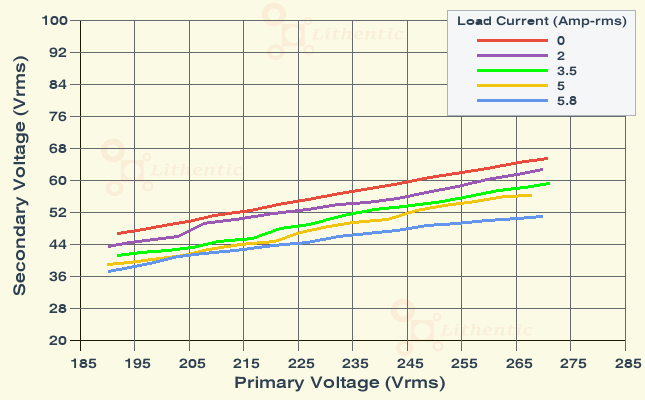

Line Characteristics (48 Vrms)
Load Characteristics (24 Vrms)
Line Characteristics (24 Vrms)
Load Characteristics (12 Vrms)
Line Characteristics (12 Vrms)
Load Characteristics (9 Vrms)
Line Characteristics (9 Vrms)

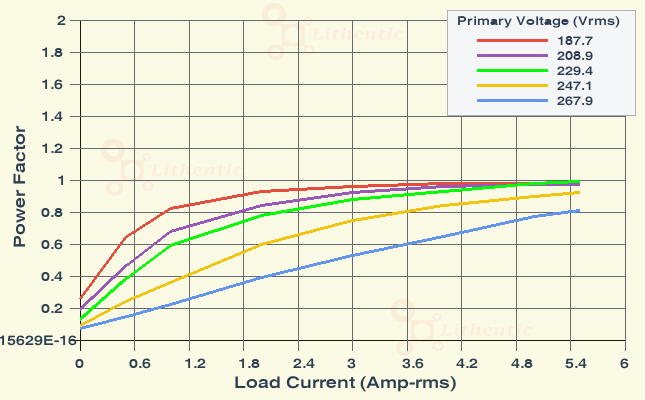

Power Factor at Primary

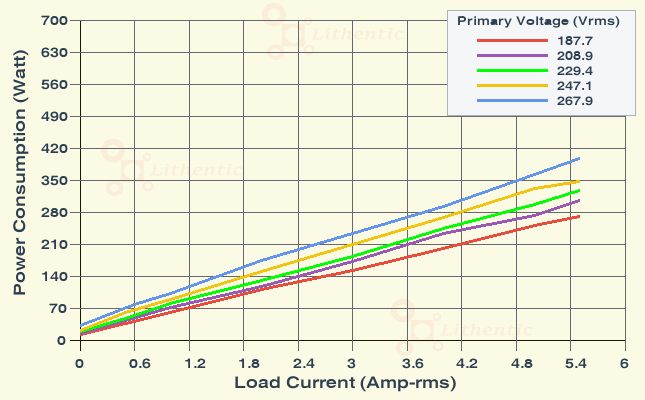

Power Consumption at Primary
Surface Temperature (12 Vrms)
Surface Temperature (9 Vrms)
