Multi-Winding 15-0-15 and 12-0-12 Volts 2.2 Amp Center Tapped Online Isolation Transformer
Product ID: TLS111EW15A2P2
TLS111EW15A2P2
Order:
Download
Features
- Single phase step down center tapped transformer
- Electrically isolated single primary and single center tapped secondary winding
- Double insulated aluminium wire winding
- High quality laminated steel core
- Cubic shape
- Clamp mounting suitable for chassis mount
- Color coded wire connections
- Free of noise
- Least heating in normal operating range
- It can overdrive from rated current with proper cooling arrangement, refer to temperature plots given below
Winding Material:Aluminium
General Specifications
| Output Voltage at Secondary Coil: | 15-0-15 and 12-0-12 | Vrms |
| Max Output Current: | 2.200 | Amp-rms |
| Power Rating: | 118.8 | VA |
| Input Voltage at Primary Coil: | 230 | Vrms |
| Max Input Current: | 0.560 | Amp-rms |
| Freuency: | 50/60 | Hz |
| Primary Coil Resistance: | 12.2 | Ohm |
| Secondary Coil Resistance: | 1.8 and 2.1 | Ohm |
(*) 10% tolerance applicable to all parameters

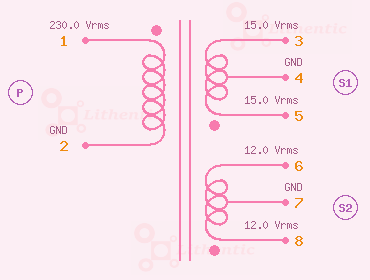

Schematic Diagram
Dimensions
| Length (L) : | 95.0 | mm |
| Width (w) : | 107.0 | mm |
| Height (H) : | 80.0 | mm |
| Height with Connector (H1) : | 86.0 | mm |
| Width with Mounting Plate (W1) : | 108.4 | mm |
| Length with Mounting Plate (L2) : | 95.0 | mm |
| Mounting hole position (C1) : | 10.7 | mm |
| Mounting hole position (C2) : | 7.5 | mm |
| Mounting hole position (C3) : | 1.5 | mm |
(*) 20% tolerance applicable to all dimensions
Weight: 2,427.0gram
Mechanical Diagram
Performance Characteristics

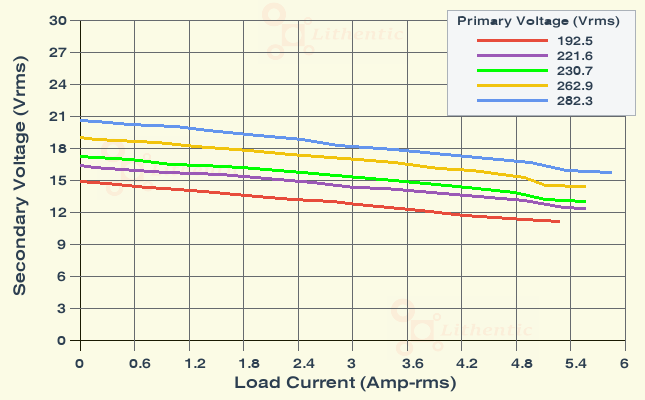

Load Characteristics (15-0-15 Vrms)
Line Characteristics (15-0-15 Vrms)
Load Characteristics (12-0-12 Vrms)
Line Characteristics (12-0-12 Vrms)

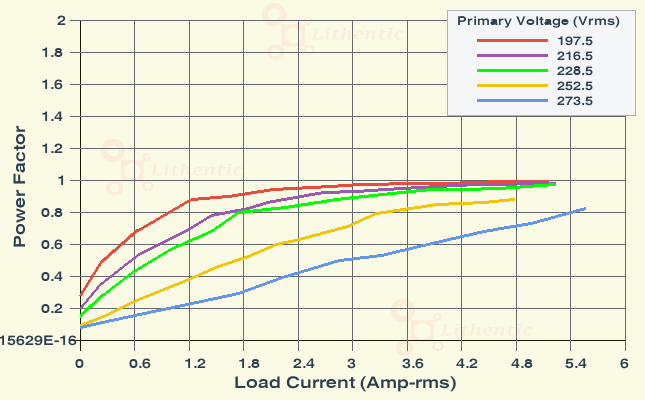

Power Factor at Primary
Power Consumption at Primary
Surface Temperature (15-0-15 Vrms)
Price Details
TLS111EW15A2P2
Order:
Avilibility
Price for 1 unit
Price upto 10 units
Price upto 25 units
Price upto 50 units
Price for 50+ units
In Stock
₹636.28
₹617.19
₹598.10
₹585.37
₹572.65
Please contact us to order large quantities
