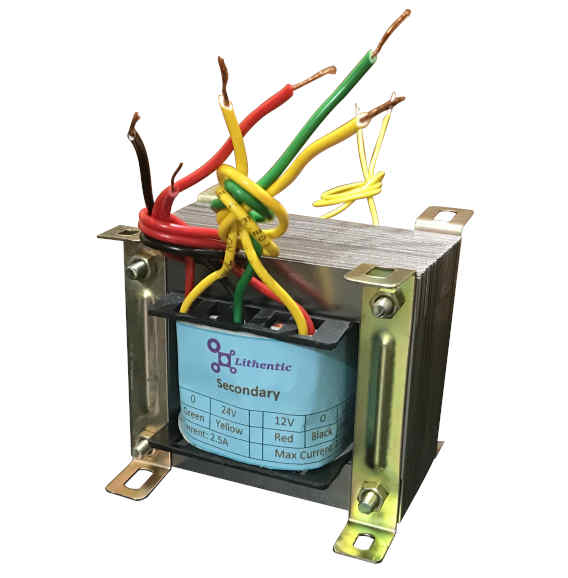

Multi-Winding 24-0-24 and 12-0-12 Volts 2.5 Amp Center Tapped Online Isolation Transformer
Product ID: TLS111EW24C2P5
TLS111EW24C2P5
Order:
Download
Features
- Single phase step down center tapped transformer
- Electrically isolated single primary and single center tapped secondary winding
- Double insulated aluminium wire winding
- High quality laminated steel core
- Cubic shape
- Clamp mounting suitable for chassis mount
- Color coded wire connections
- Free of noise
- Least heating in normal operating range
- It can overdrive from rated current with proper cooling arrangement, refer to temperature plots given below
Winding Material:Copper
General Specifications
| Output Voltage at Secondary Coil: | 24-0-24 and 12-0-12 | Vrms |
| Max Output Current: | 2.500 | Amp-rms |
| Power Rating: | 338.0 | VA |
| Input Voltage at Primary Coil: | 230 | Vrms |
| Max Input Current: | 1.200 | Amp-rms |
| Freuency: | 50/60 | Hz |
| Primary Coil Resistance: | 8.6 | Ohm |
| Secondary Coil Resistance: | 2.2 and 1.8 | Ohm |
(*) 10% tolerance applicable to all parameters

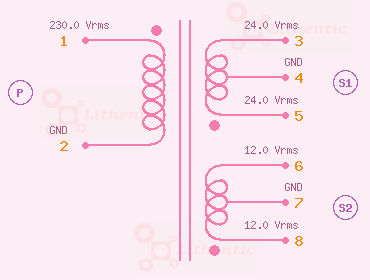

Schematic Diagram
Dimensions
| Length (L) : | 95.0 | mm |
| Width (w) : | 84.0 | mm |
| Height (H) : | 80.0 | mm |
| Height with Connector (H1) : | 86.0 | mm |
| Width with Mounting Plate (W1) : | 91.8 | mm |
| Length with Mounting Plate (L2) : | 95.0 | mm |
| Mounting hole position (C1) : | 10.7 | mm |
| Mounting hole position (C2) : | 7.5 | mm |
| Mounting hole position (C3) : | 1.5 | mm |
(*) 20% tolerance applicable to all dimensions
Weight: 2,600.0gram

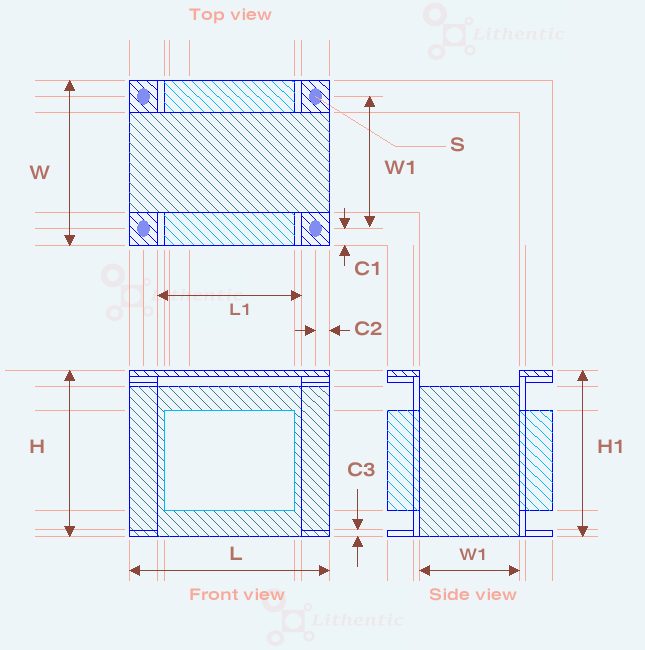

Mechanical Diagram
Performance Characteristics

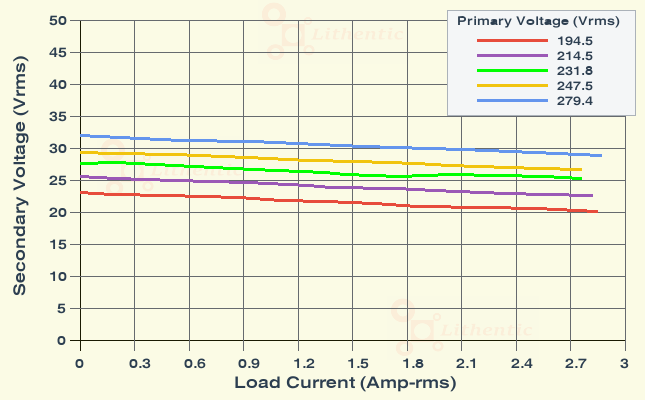

Load Characteristics (24-0-24 Vrms)

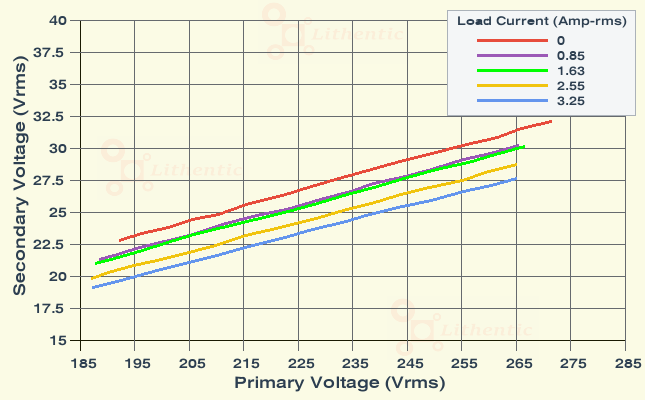

Line Characteristics (24-0-24 Vrms)
Load Characteristics (12-0-12 Vrms)
Line Characteristics (12-0-12 Vrms)

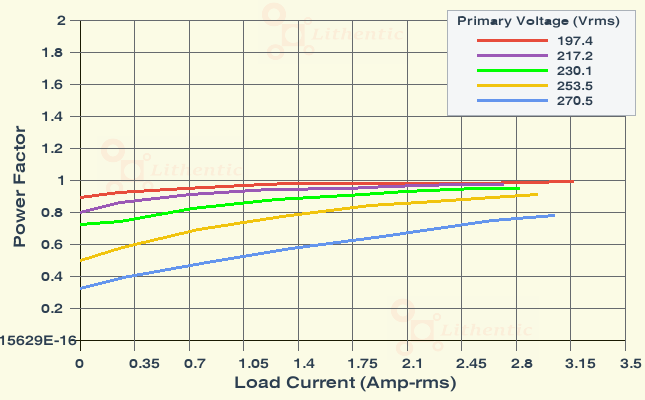

Power Factor at Primary

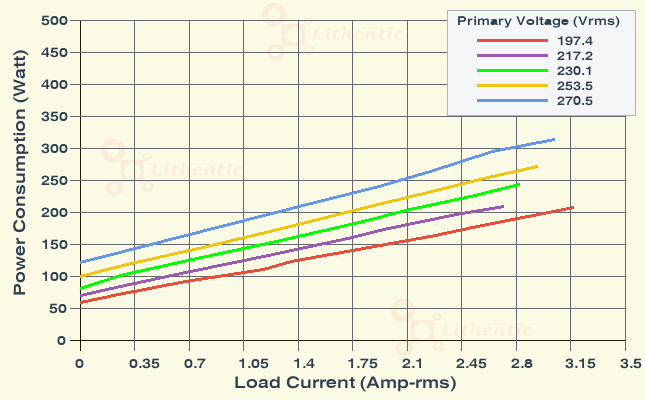

Power Consumption at Primary

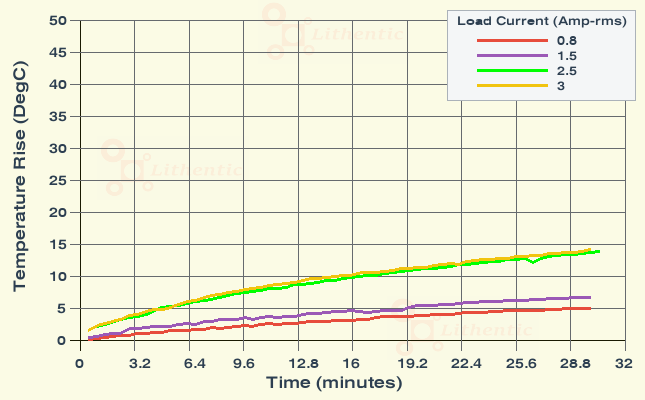

Surface Temperature (24-0-24 Vrms)
